Specification:
Dimension(mm): 12500x2500x1550mm
Loading Capacity: ≤90 tons
Main Beam: height 500mm, upper plate: 14mm, middle plate: 8mm, bottom plate: 16mm, material: Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Axle: 3 axle*13T/16T*FUWA/ BPW brand
Tire: 12 units*12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5
Suspension: mechanical suspension or air suspension
Spring Leaf: 90(w)mmx13(thickness)mmx10 layers
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand
Brake Valve: WABCO valve
Twist Locks: 12 sets (lifting or screw type)
ABS: optional
Light: LED light
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m standard size
Painting: 1 layer of anticorrosive primer and 2 layers of top coats
Advantage：

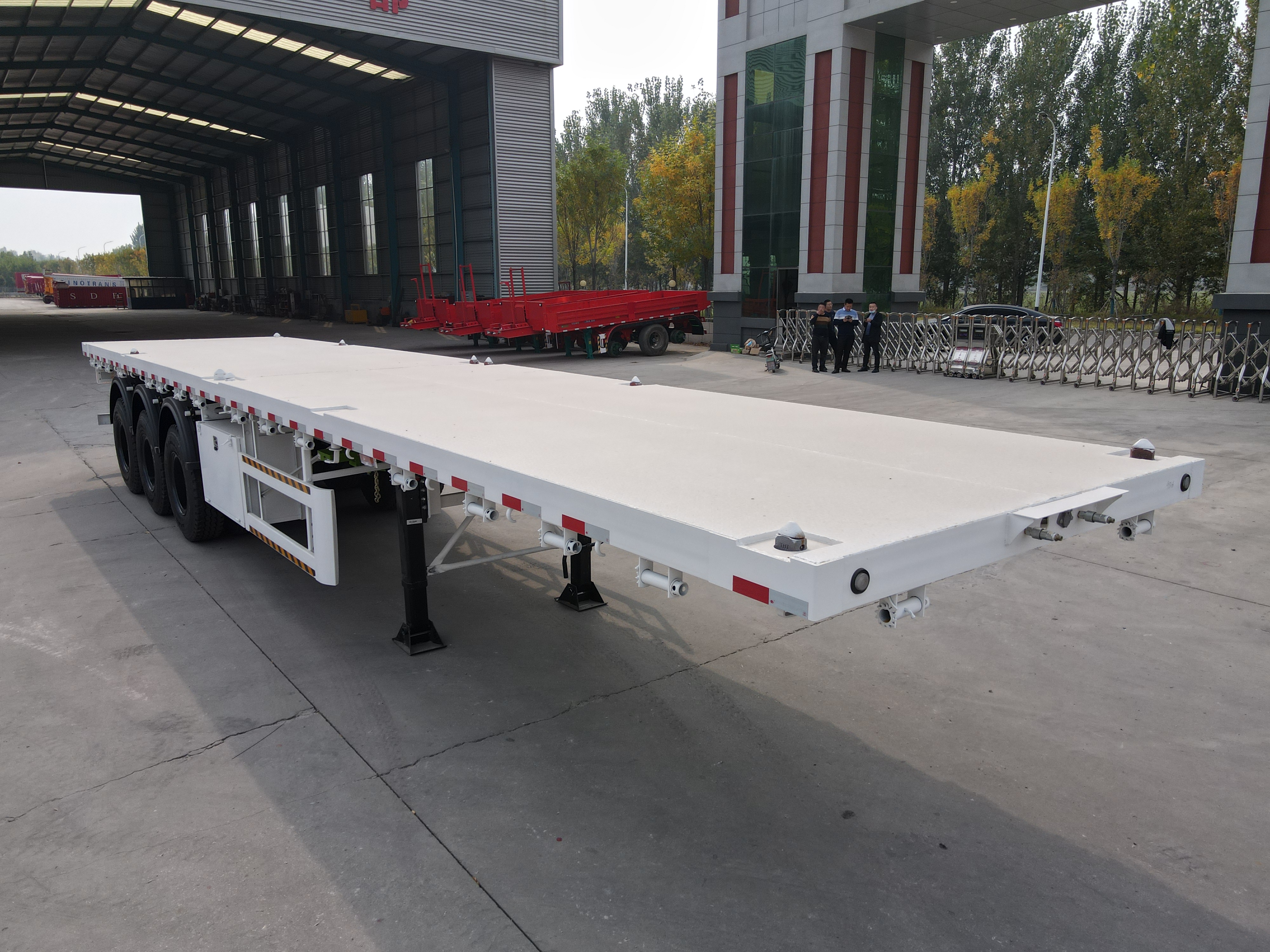

1. The main beam of the 40ft flatbed container semi trailer adopts high-strength steel plate, and its yield strength is twice that of manganese steel and three times that of ordinary steel.
2. It adopts thickened leaf spring suspension, which has large bearing capacity, good stability, low investment cost and convenient maintenance.
3. YUHANG adopts a fully automatic bottom plate welding machine, which automatically tracks the edge of the welding bottom plate; the welding seam is tight and strong, the welding quality is high, and it is green and environmentally friendly.
4. High-quality 12 sets twist locks are installed on the corresponding positions of the four corners of the bottom of the flatbed trailer to ensure safe and efficient container transportation.
5. All flatbed trailer are sprayed with wax and covered with tarpaulins during sea transportation to protect them from sea water and rain, preventing paint peeling and rusting.
